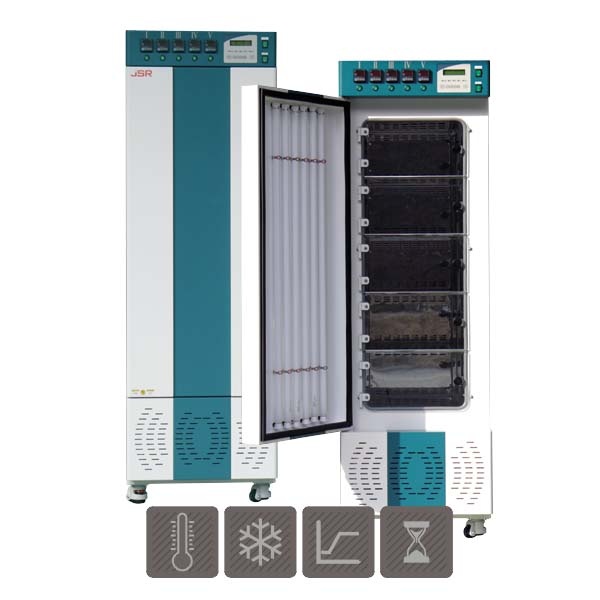

Multi-Room Incubator (5-챔버 다실배양기)
Specifications
|
Chamber Config. |
Five chamber with single outer door and five inner doors |
|
|
independent temperature control |
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+ 5°C ~ 70°C |
|
Accuracy |
± 0.2°C at 20.0°C |
|
Uniformity |
± 0.5°C at 20.0°C |
|
Control |
Microprocessor PID control |
|
|
Photoperiodic Light Control (JSMI-05CL) |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety |
|
|
Shelf -including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
|
Built-in caster for east transport |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume |
44 L x 5 Chambers / Singel Outer Door / Five Inner Glass Doors |
||
|
Dimensions |
Inner |
400 x 500 x 220 / chamber |
|
|
W x D x H mm |
Outer |
600 x 825 x 1920 |
|
|
Temperature Range |
+ 5°C to 70°C |
||
|
Accuracy at 20.0°C |
± 0.2°C at 20°C (without light) |
||
|
Uniformity at 20.0°C |
± 0.5°C at 20°C (without light) |
||
|
Light Control |
none |
2 x 32 Watt Fluorescent |
|
|
Heater Capacity |
5 x 400 W |
||
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||
|
Power Rating |
15.0 Amp |
||
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||

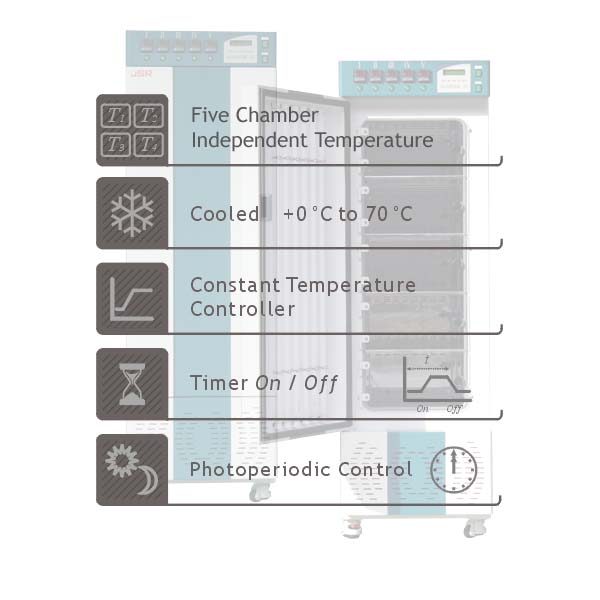

Features
|
JSMI-05C Five Chamber Multi-Room Refrigerated Incubator |
|
±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
JSMI-05CL Five Chamber Multi-Room Refrigerated Incubator |
|
Same as JSMI-05C with Programmable Photoperiodic Day and Night simulation Light Control with 2 x 32 Watt Fluorescent FPL
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy decontamination and prevents leakage Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Tempered safety inner glass door for easy observation of samples
|
|
Performance |
|
Forced circulation for excellent thermal accuracy within ±0.2°C Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with high density silicone packing and air-tight door lock Stainless Steel 304 Chamber with seamless round cornered edge allows easy decontamination and prevents leakage Adjustable automatic defrost system
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSMI-05C |
Multi-Room Refrigerated Incubator |
220 VAC 50/60 Hz |
5 x 44 L |
- |
- |
|
JSMI-05CL |
Multi-Room Refrigerated Incubator Photoperiodic Light Control |
220 VAC 50/60 Hz |
5 x 44 L |
- |
- |
General Incubator 미생물배양기
JSGI-시리즈 미생물 배양기는 상온 +5 oC 에서 +70 oC 까지 정밀한 배양 온도를 제어하여 미생물, 각종 균류, 세포, 생체조직 등을 배양하는데 적합합니다.
Dual Chamber General Incubator 2실 미생물배양기
JSGI-250DT Dual Chamber Incubator는 500 리터의 배양공간을 제공하여 다량의 배양을 수행하는데 적합합니다. 2개의 250 리터 용량 챔버는 각각 온도 콘트롤러가 장착되어 있어 서로 다른 온도에서 동시 배양이 가능 합니다. 상온 +5 oC 에서 +70 oC 까지 정밀한 배양 온도를 제어하여 미생물, 각종 균류, 세포, 생체조직 등을 배양하는데 적합합니다.
Compact Incubator (소형배양기)
JSGI-Series Compact Economic Incubator is suitable for personal, small food laboratory or HACCP Industry doing daily incubation of bacterial screening with Petri-Dish or Petri-Film.
Tabletop Refrigerated Incubator 탁상형 저온배양기
컴팩트한 탁상형 디자인으로 실험대 위에 설치하여 사용이 가능하며, 상온 보다 낮은 저온 환경에서 미생물 배양, 동식물 세포 및 조직배양, 식품 보존성 실험, 항온 실험, 수질 분석실험, BOD(생물학적 산소 요구량) 시험, 제약 QA / QC 테스트에 적합 합니다.
Refrigerated Low Temperature BOD Incubator 저온 BOD 배양기
상온 보다 낮은 저온 환경에서 미생물 배양, 동식물 세포 및 조직배양, 식품 보존성 실험, 항온 실험, 수질 분석실험, BOD(생물학적 산소 요구량)시험, 제약 QA / QC 테스트에 적합합니다.
Programmable Refrigerated Low Temp. BOD Incubator (프로그램 저온 BOD 배양기)
JSBI-CP Series Programmable Refrigerated BOD Incubator gives excellent incubation conditions below ambient temperature for bacterial, fungal, cell and tissue culture incubation with temperature vs time programming up to 5 patterns internal memory and 80 temperature segments range from 0°C to 70°C.
2 x 250 L Dual Chamber Refrigerated Low Temperature BOD Incubator / 2실 저온 BOD 배양기
Dual Chamber Refrigerated BOD Incubator provides large capacity volume and independent temperature control to treat large number of samples in various incubation conditions below ambient temperature for bacterial, fungal, cell and tissue culture incubation temperature range from 0°C to 70°C or BOD (Biological Oxygen Demand) test, QA or QC laboratory in pharmaceutical industries.
2 x 125 L Dual Chamber Refrigerated Low Temperature BOD Incubator / 2실 저온 BOD 배양기
2실 저온배양기는 2개의 125리터 용량의 챔버에서 대량의 시료를 배양 할 수 있는 장점을 가지고 있습니다. 또한 각 챔버는 개별 온도제어가 가능하여 서로 다른 온도 조건의 비교배양 실험에도 적합합니다. 상온 보다 낮은 저온 환경에서 미생물 배양, 동식물 세포 및 조직배양, 식품 보존성 실험, 항온 실험, 수질 분석실험, BOD(생물학적 산소 요구량)시험, 제약 QA / QC 테스트 등에 적합합니다.
2 x 125 L Dual Chamber Refrigerated Low Temperature BOD Incubator (Programmable) / 프로그램 2실 저온 BOD 배양기
JSMI-02CP(L) Series Multi-Room Programmable Refrigerated Incubator equipped with 5 Pattern internal memory, 80 segments and light control for photoperiodic day-night simulation program capability provides various incubation and test condition needs temperature vs time vs light programming.
4 x 125 L Multi-Room Incubator 4-챔버 다실배양기
4실 배양기는 4개의 125리터 용량의 챔버에서 대량의 시료를 배양 할 수 있는 장점을 가지고 있습니다. 또한 각 챔버는 개별 온도제어가 가능하여 서로 다른 온도 조건의 비교배양 실험에도 적합합니다. 상온 보다 낮은 저온 환경에서 미생물 배양, 동식물 세포 및 조직배양, 식품 보존성 실험, 항온 실험, 수질 분석실험, BOD(생물학적 산소 요구량)시험, 제약 QA / QC 테스트 등에 적합합니다.
