2 x 250 L Dual Chamber Refrigerated Low Temperature BOD Incubator / 2실 저온 BOD 배양기
Specifications
|
Chamber Config. |

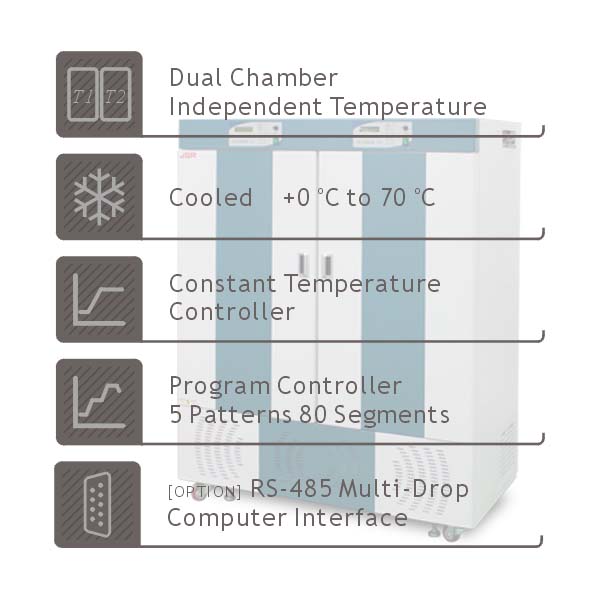

Dual chamber with two doors and independent temperature control |
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+ 0°C ~ 70°C |
|
Accuracy |
± 0.2°C at 20.0°C |
|
Uniformity |
± 0.5°C at 20.0°C |
|
Control |
Microprocessor PID Control (JSBI-250DC) |
|
|
Programmable PID Control (JSBI-250DCP) |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety |
|
|
Shelf -including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
|
Built-in caster for east transport |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume |
250 L x 2 Chamber 2 Door |
||
|
Dimensions |
Inner |
500 x 500 x 1000 |
|
|
W x D x H mm |
Outer |
1365 x 825 x 1760 |
1365 x 810 x 1830 |
|
Temperature Controller |
JSC-1D Digital PID Controller |
JSC-5D Programmable Controller |
|
|
Range |
+0°C to 70°C |
||
|
Accuracy at 20.0°C |
± 0.2°C |
± 0.2°C |
|
|
Uniformity at 20.0°C |
± 0.5°C |
± 0.5°C |
|
|
Number of shelves/Max. |
3 / 36 per chamber |
||
|
Heater Capacity |
1.0 kW x 2 ea |
||
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||
|
Power Rating |
15.0 Amp |
||
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||
Features
|
JSBI-250DC Dual Chamber Refrigerated Incubator |
|
JSC-1D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
JSBI-250DCP Programmable Dual Chamber Refrigerated Incubator |
|

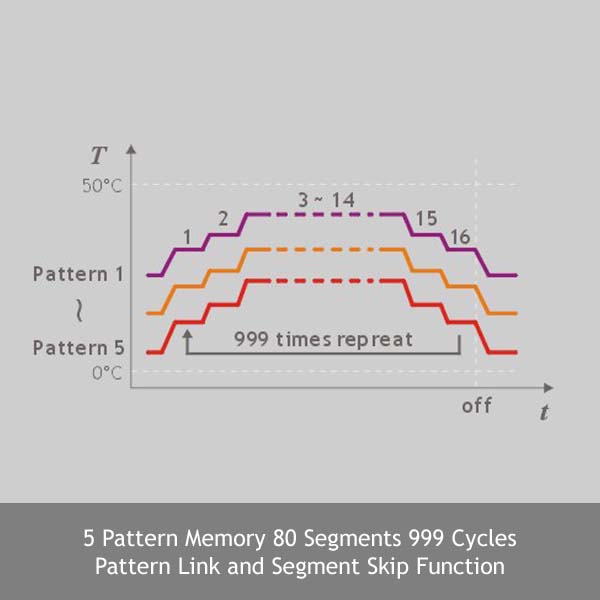

JSC-5D Programmable Controller 5 Patterns 80 Segments ±0.1°C Programmable 16-bit Microprocessor PID Controller Two-line back-light LCD Display 5 Patterns Memory 80 Segments 999 Cycles repeatable Supports Constant Temperature Mode / Program Mode Pattern link function Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min continuous operation Temperature calibration function Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy decontamination and prevents leakage Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Tempered safety inner glass door for easy observation of samples Dual chamber with independent doors and temperature controllers
|
|
Performance |
|
Forced circulation for excellent thermal uniformity within ±0.2 oC Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with high density silicone packing and air-tight door lock Stainless Steel 304 Chamber with seamless round cornered edge allows easy decontamination and prevents leakage Removable and height adjustable shelf by 25mm spacing Adjustable automatic defrost system
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSBI-250DC |
Dual Chamber Refrigerated Incubator /w Digital PID Controller |
220 VAC 50/60 Hz |
2 x 250 L |
220 kg |
350 kg |
|
JSBI-250DCP |
Dual Chamber Refrigerated Incubator /w Programmable PID Controller |
220 VAC 50/60 Hz |
2 x 250 L |
230 kg |
360 kg |
|
Optional Controller |
|
|
Art No. |
Descriptions |
|
OEC-002 |
JSC-1D Constant Temperature Controller with RS-485 Multi-Drop Interface, PC Software for JSBI-250DC |
|
OEC-004 |

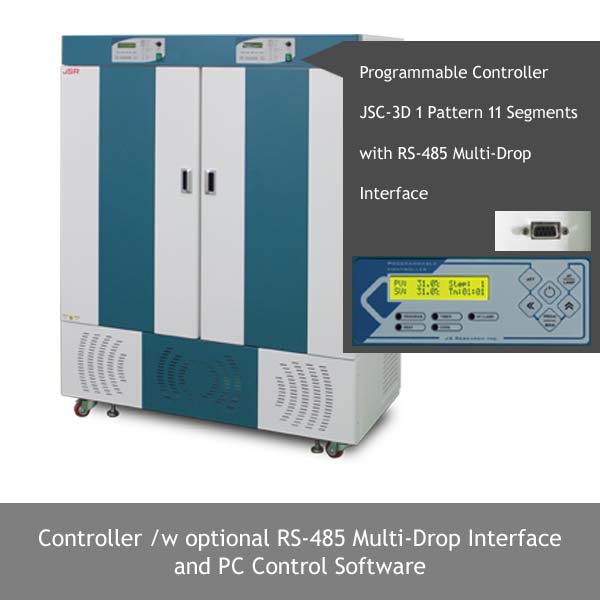

JSC-3D Programmable Controller with RS-485 Multi-Drop Interface, PC Software for JSBI-250DCP 1 Pattern 11 Segments Programmable PID Controller |
|
|
PC Software |
|
|

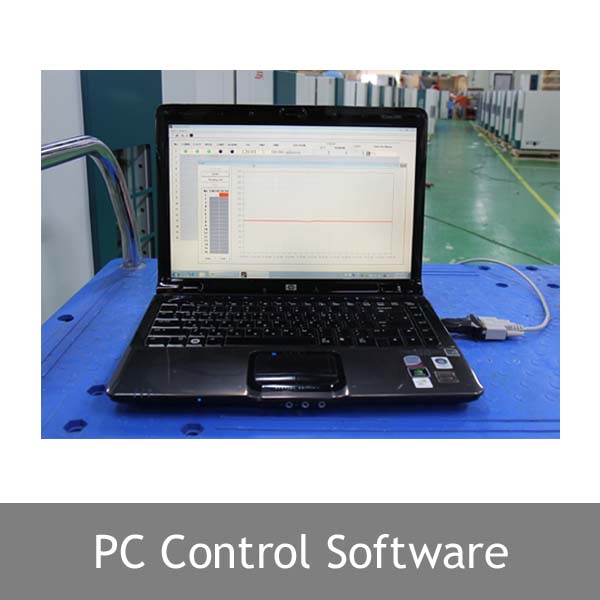

Turn On and Off control Temperature and Timer Setting Pattern Programming and uploading Current temperature Graph Rendering Temperature Data Logging by 0.01°C resolution Alarm Signal |
|
Optional Accessories |
|
|
Art No. |
Descriptions |
|
OEA-001 |
Power Outlet Consent in Chamber for CEE 7/7 Schuko Plug |
|
OEA-002 |
Power Outlet Consent in Chamber for BS 1363 Plug |
|
|
|
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A06 |
for JSBI-250DC, 250DCP W470 x D480 mm |
|
|
|
|
Art No. |
PVC Coated Wire Shelf |
|
PHS-C05 |
for JSBI-250DC, 250DCP W470 x D480 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
