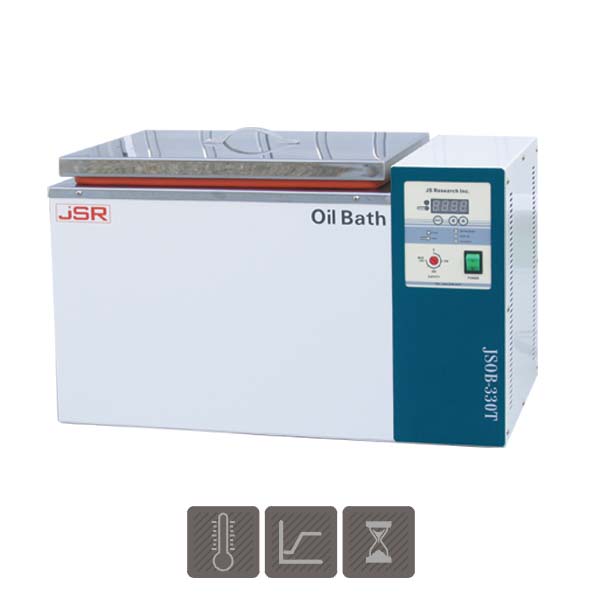

Digital Oil Bath (오일 배스)
Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
Temp. Range |
ambient + 10°C ~ 250°C |
|
Accuracy |
± 1.0°C at 120.0°C (JSOB-200T) |
|
Uniformity |
± 3.0°C at 120.0°C (JSOB-200T) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath – Electro-polished Seamless Stainless Steel 304 |
|
|
Heater Cover – Perforated Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko |
Models
|
Art No. |
||||
|
Bath Volume |
11 L |
20 L |
33 L |
|
|
Dimensions |
Inner |
300 x 220 x 170 |
400 x 300 x 170 |
430 x 300 x 260 |
|
W x D x H mm |
Usable |
300 x 220 x 130 |
400 x 300 x 130 |
430 x 300 x 210 |
|
|
Outer |
550 x 310 x 340 |
650 x 390 x 360 |
680 x 390 x 450 |
|
Temperature Range |
ambient+10°C to 250°C |
|||
|
Accuracy at 120°C |
± 1.0°C |
± 1.0°C |
± 1.0°C |
|
|
Uniformity at 120°C |
± 3.0°C |
± 3.0°C |
± 5.0°C |
|
|
Drain Valve |
yes |
|||
|
Heater Capacity |
2.0 kW |
3.0 kW |
3.0 kW |
|
|
Power Rating |
9.1 Amp |
13.6 Amp |
13.6 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard |
|||

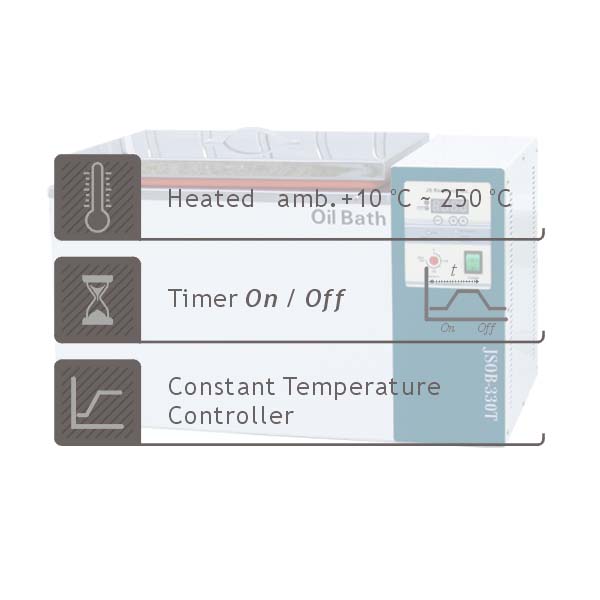

Features
|
Controller |
|
JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 bath Corrosion resistant Stainless Steel 304 sheath immersion heater Corrosion resistant Stainless Steel 304 lid with silicone gasket and exhaust Perforated heater cover (bottom plate) included
|
|
Performance |
|
Maintain oil temperature from ambient + 10°C to 250°C Excellent control accuracy within ± 1.0°C and thermal uniformity within ± 3.0°C Corrosion resistant Stainless Steel 304 sheath immersion heater directly heating oil in the bath to reach set temperature quickly Perforated heater cover helps convection of heated oil circulation throughout bath to maintain thermal uniformity of the bath
|
|
Convenience |
|
Perforated stainless steel bottom plate Drain for easy emptying of the bath fluid Supplied with stainless steel lid with silicone gasket and exhaust to help reduce heat losses and evaporation
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSOB-100T |
Digital Oil Bath |
220 VAC 50/60 Hz |
11 L |
18 kg |
20 kg |
|
JSOB-200T |
Digital Oil Bath |
220 VAC 50/60 Hz |
20 L |
24 kg |
26 kg |
|
JSOB-300T |
Digital Oil Bath |
220 VAC 50/60 Hz |
33 L |
28 kg |
30 kg |
