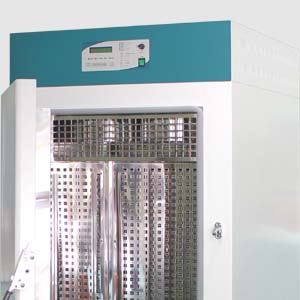

HEPA Filter Clean Air Oven
Specifications
|
Heating |
Forced Air Convection |
|
|
Horizontal laminar air flow |
|
Temp. Range |
ambient + 10°C ~ 250°C |
|
Accuracy |
± 0.3°C at 120°C (JSCO-150T) |
|
Uniformity |
± 5.0°C at 120°C (JSCO-150T) |
|
Air Filtration |
High Temp. H14 (ISO Class 5) HEPA Filter |
|
|
99.995% > 0.3um particles |
|
Control |
Programmable Microprocessor PID Control |
|
|
5 Patterns Memory 80 Segments 999 cycle repeat |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Insulation – 50mm thick woven mineral wool |
|
|
Floor Standing with Casters |
|
|
Shelf -including perforated stainless steel shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase or 380±10% VAC 50/60Hz 3-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 or 30 AMP |
Models
|
Art No. |
||||
|
Chamber Volume |
168 L |
336 L |
1200 L |
|
|
Dimensions |
Inner |
600 x 560 x 500 |
600 x 560 x 1000 |
1000 x 1000 x 1200 |
|
W x D x H mm |
Outer |
845 x 1100 x 1240 |
845 x 1100 x 1740 |
1245 x 1540 x 1940 |
|
|
Clearance |
845 x 1110 x 1250 |
845 x 1110 x 1750 |
1245 x 1550 x 1950 |
|
Temperature Range |
ambient +10°C to 250°C |
|||
|
Accuracy at 120°C |
±0.3°C |
±0.3°C |
±0.5°C |
|
|
Uniformity at 120°C |
±5.0°C |
±5.0°C |
±8.0°C |
|
|
HEPA Filter |
H14 (ISO Class 5) HI-TEMP HEPA Filter Efficiency 99.995%>0.3um particles |
|||
|
No. of Shelves / Max. No. |
2 / 14 |
3 / 36 |
4 / 36 |
|
|
No. of Ventilation damper |
1 |
|||
|
Heater Capacity |
2 x 1.0 kW |
2 x 2.0 kW |
3 x 2.5 kW |
|
|
Electrical Requirement |
220VAC 50/60Hz 1P |
220VAC 50/60Hz 1P |
220VAC 1P or 380VAC 3P 4W |
|
|
Power Rating |
11.0 Amp |
20.2 Amp |
- |
|
|
Power Plug |
CEE 7/7 Schuko |
30 AMP |
||

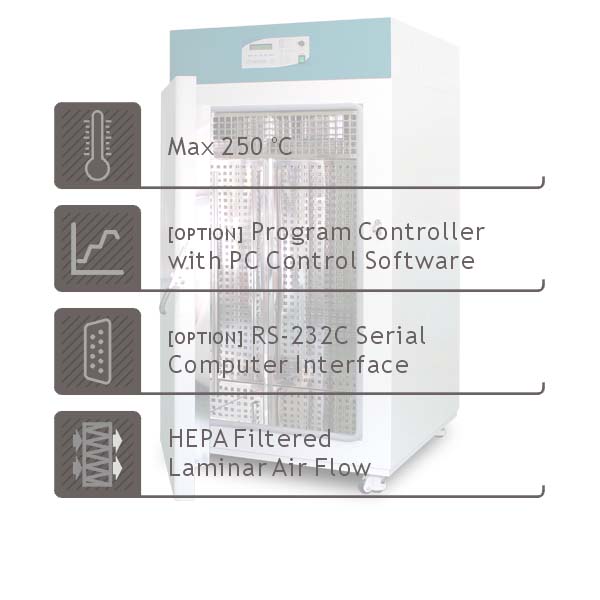

Features
| Construction | Hi-Temp. HEPA Filter | Laminar Air Flow | ||
 |
 |
 |
||
| PC Communication | Safety | |||
 |
 |
|
Controller |
|

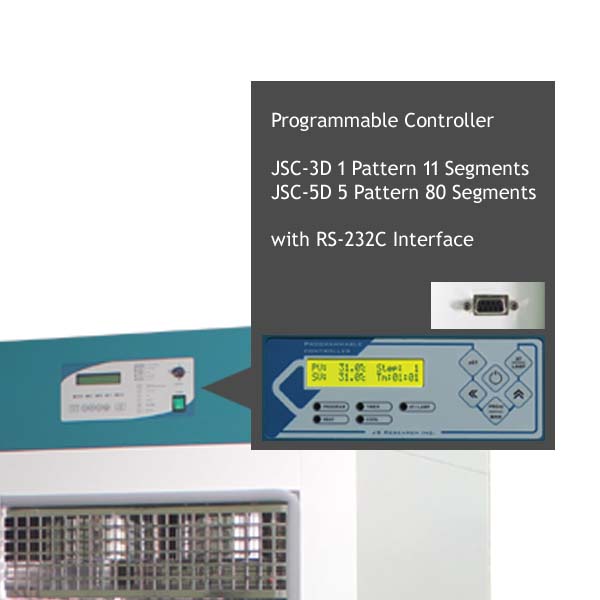

JSC-5D Programmable Controller 5 Patterns 80 Segments 16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 5 Pattern 80 Segments 999 times or unlimited repeat. Segment skip and pattern link function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber
|
|
Performance |
|

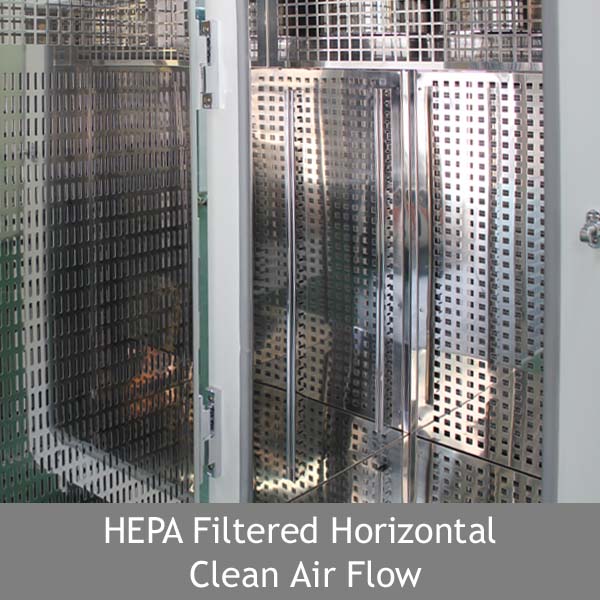

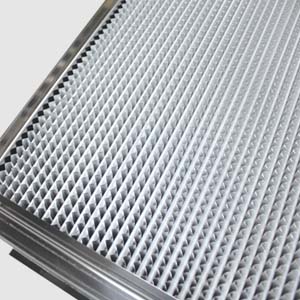

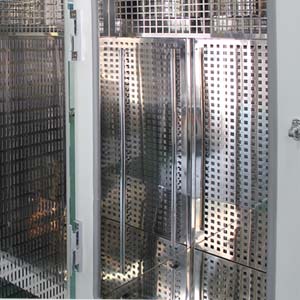

Forced air convection through HI-TEMP. H14 (ISO Class 5) HEPA Filter removes particles up to 99.995% HEPA filtered clean horizontal laminar air flow created across the chamber between HEPA Filter installed on the back wall and drawn into the inlet grilles on front door plenum keep circulated by powerful sirocco blower prevent cross-contamination and excellent thermal uniformity 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Convenience |
|
Floor standing for easy transport and large volume allow more throughput and productivity of sample treatment Stainless Steel 316 (ASTM 316) Chamber [OPTION] Removable and height adjustable shelf by 25mm spacing Outer door with silicone gasket and compression door lock Easy-to-Replace HEPA Filter
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit DOOR SENSOR : Non-contact magnetic door switch cut-off heater and blower when door opened SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSCO-150T |
Clean Air Oven |
220 VAC 50/60 Hz |
168 L |
190 kg |
280 kg |
|
JSCO-300T |
Clean Air Oven |
220 VAC 50/60 Hz |
336 L |
230 kg |
320 kg |
|

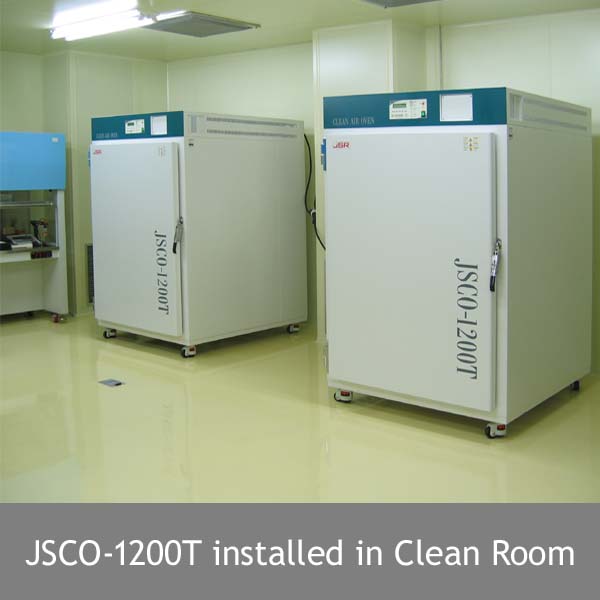

JSCO-1200T |
Clean Air Oven |
380 VAC 50/60 Hz |
1200 L |
410 kg |
540 kg |
Optional Controller
|
Art No. |
Descriptions |
|
OEC-003 |
JSC-3D Programmable Controller 1 Pattern 11 Segments /w RS-232C Interface, PC Software |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 1 Pattern 11 Segments 999 times or unlimited repeat. Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
Factory Built-in Options
|
Art No. |
Descriptions |
|
OHC-002 |
Differential Pressure Gauge to monitoring HEAP Filter pressure drop |
|
OHM-001 |
Stainless Steel 316 (ASTM316) chamber |
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A08 |
for JSCO-150T W570 x D540 mm |
|
PHS-A08 |
for JSCO-300T W570 x D540 mm |
|
PHS-A17 |
for JSCO-1200T W970 x D980 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
